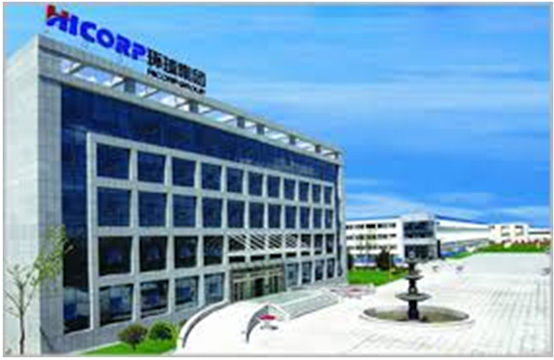

Qingdao Hicorp group in 1966,created 46 years in the course of development, company scale has grown, has been involved in textile machinery, auto parts, footwear and multiple industries such as real estate, is a collection branch engineering, trade in one of the modern enterprise group. Group has been named “Qingdao City A level credit enterprise”. “Enterprise of observing contract and valuing credit “, “ AAA grade enterprise”, “national model warders”.

46 years, Hicorp people actively practice “leering, innovation, pioneering” core value. Focus on techno innovation, accelerating improvement of enterprises’ core competitiveness, and continuously improve the scientific and technological content of the products. group has provincial Technology Center, and national recognized laboratory, continued accelerated technology innovation pace, has is grant national high-tech enterprise ,and national torch plans focus high-tech enterprise, honors title ,become china patent Shandong province star enterprise ,won national patent 169items,national authorized invention patent 15 items, won national technical department and provincial technology progress award 12 items ,has 22 kinds of machinery products as national new products.

CMT-HICORP MACHINERY(QINGDAO)CO.,LTD PRODUCE HCP810 Air-jet Weaving machine with independent intellectual property rights in domestic market, sizing the commanding heights of the domestic high-speed weaving machine.

In the new era of global economic integration, unity and hard work, earning and innovational in Hicorp people with an inclusive world, the world of universal heart, dedicated to studding aquatic weeds in the world including China’s intellectual elite, and friends of home and abroad to create a mutual better future.

HIGH-SPEED AIR-JET WEAVING MACHINE

HIGH SPEED

New beating weft device, new frame structure, high speed controlled by CPU system, making machine speed to reach 1300 rpm.

RMB 810

Along with the development of the information society, the requirement of customer is also more inclined to diversification, deepening.CMT-HICORP machinery (Qing Dao).Co.Ltd and Italian team derive the design essence of airjet loom from Europe, japan. Use current world the most advanced control theory, carefully research a leading global high-speed HCP810 air-jet weaving machine.

HCP810 air-jet weaving machine has special design in high speed and low vibration and energy saving, further satisfy customers on the synthetic fiber, cotton and wool etc

Advantage Features of machine to ensure high-quality woven fabrics

High speed and plenty time weft beating

Using four connecting rod or six connecting rod beating –up mechanism, ensure beating plebty time for weft insertion, thus giving HCP810 excellent weaving performance.

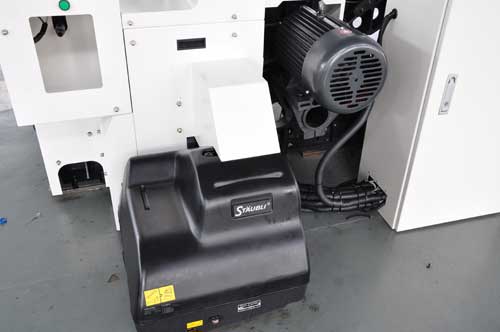

Electronic Dobby Shedding

Dobby style, wrap direction, weft direction can separately set through the screen and also can edit, save.

Active Cam Shedding

The serialization positive cam shedding device suitable for a variety of level, twill weave and thick fabric.

Electronic Control Take –up Device

Weft density can set through the screen

Solenoid Value

The choice of high performance solenoid valves and a variety of vice spray effective control of the consumption of compressed air. © 2016 p. All Rights Reserved.

Main imported parts list

No. Description Manufacturer Country
1 Electrical control system DENKEN Japan
2 Shedding STUBIL France
3 Pick storer IRO Sweden
4 Heald frames NEW LIGHT Japan
5 heald wires KIJIREED Japan
6 steel reeds KIJIREED Japan
7 Electromagnetic valve SMC Japan
8 Air passage part SMC Japan
9 Bearing (key parts) NSK or SKF Japan
10 Oil Seal NOK Japan
11 Electronic let-off mechanism Panasonic Japan
12 Electronic take-up device Panasonic Japan

REMARK: THE ORIGIN OF ABOVE PRODUCTS POSSIBLY TO BE THE OTHER COUNTRY OR REGION, BUT SUBJECT TO ITS ACTUAL ORIGIN.

QINGDAO DONGJIA TEXTILE MACHINERY GROUP CO., LTD

To go with the trend of market development ,and to meet customers’ requirements for high-quality and diversification of air-jet looms, Dongjia team elaborately forged and lunched higher-speed, more stable and more energy-saving ja60 all-powerful series air-jet looms based on the idea “to break the rules, you must first master them”.

MORE INTELLEGENT

High reliability touch screen, new type communication technology and high electromechanical integration design make machine realize high intelligence.

MORE EFFICIENT

New type integrated side frames, the beating-up mechanism with good balance performance and the excellent weft insertion system complement each other ,applicable to various yarn counts ,and at the same time help realize the weaving of high-speed ,low vibration and high quality.

The machine is of high electro mechanization, more excellent in high-speed, low vibration ,energy –saving and less manpower, application to weave products from common garments fabrics to various industrial fabrics ranging from denim, woolens, glass fibers tire fabrics, airbag fabrics,etc. As the new generation of weaving equipment, it has great development potentiality.

MORE CONVENIENT

Full consideration of the convenience for the operation of workers in the course of design, external loose warp device, automatic central oil supply system, and friendly man-machine interface make machine more

MORE ENERGY-SAVING

New type energy-saving weft insertion system shorten air path, increase jet sensitivity and reduce air consumption.

MORE STABLE NEW TYPE FRAMEWORK

Integrated side frames innovatively designed, with high rigidity cross rails and mid-supporters to from Ultra-high strength framework, thus make looms keep low vibrations while its high-speed running.

MORE EFFICIENT BRAKING STABLITY

Adopt double braking disc electromagnetic device to realize loom’s precision, thus to efficient prevent stop marks and improve fabric quality.

ADJUSTABLE EXTERNAL LET-OFF MECHANISM

Equipped with external loose warp mechanism, which make operation more simple and convenient; eccentric device with graduation marks can make loose warp amount adjusted freely among 0-6mm to meet the requirement of more fabrics

MORE ENERGY-SAVING WEFT INSERTION SYSTEM

Equipped with new type energy-saving weft insertion system, which can shorten air path, I increase jet sensitivity and reduce air consumption.

BROKEN WARP DISPLAY

6-rowed broken warp device with separate display, which can find the position of broken warp yarn quickly and improve the weaving efficiency.

STABLE BEATING –UP MECHANISM

The 6-link rod beating –up mechanism based on computer aided optimum design can increase the dwell time of sley aat the back to realize stable weft insertion while high-speed operation suitable to high-speed or wide loom. Optimally –designed 4-link rod beating –up mechanism is of short strike and small vibration, and can affect strong beating-up while high-speed operation, suitable to high-speed narrow loom.

FEATURES

ELECTRONIC LET-OFF MECHANISM

Adopt servo motor driving technology to accurately measure and keep warp tension, and reduce the fluctuation of warp tension ;adjust the tension automatically while loom starting to eliminate the tension change in the course of stopping to avoid stop marks and ensure fabric quality

ELECTRONIC TAKE-UP DEVICE

Adopt servo motor to ensure complete synchronization of the take-up and looms control the pick destiny of fabric through computer control, the pick density of fabric can be set freely on the touch screen instead of changing gears. Additionally, through link page operation with electronic let–off, the adjustment can be effected more easily.

AUTOMATIC CENTRAL OIL SUPPLY

The automatic central oil supply lubricating system can set the running time and stopping time of oil pump automatically, and it’s equipped with alarm device to ensure the normal running of lubricating system. This system reduced labor intensity and can efficiently increase the service life of spare parts.

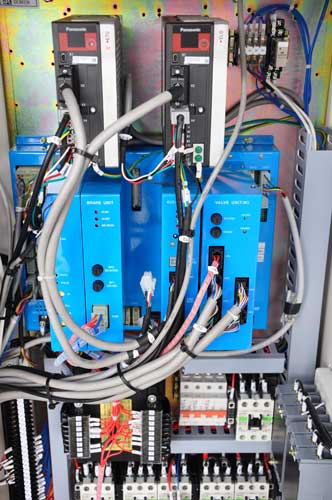

NEW TYPE ELECTRICAL CONTROL SYSTEM

Large-screen color LCD touch screen and human interface are fixed to display some information such as running status, fault analysis, technological parameters ,etc .on the screen, convenient for operation; the USB communication interface is fixed to input various setting parameters into other looms. Weaving guidance system can monitor the working status of looms at any time and be used to set the optimum technological parameters according to loom conditions and fabric technology, further improving the stop mark preventing function of looms and increasing the quality of fabrics.

FEATURES

Electronic & pneumatic tucked-in device can directly tuck weft ends into selvedges to achieve clean ones. for electromagnetic air flow is adopted to realize weft end tucked-in. high-speed weaving can be achieved, the tucked –in device is fixed not only for left and right edge of single width fabrics ,but also for double width or multi width clean selvedge fabrics.

To meet the requirement of sizing and warping of some weaving factories, we developed left & right double beam mechanism for weaving width fabrics and double open width fabrics. The driving mechanism for left &right selvedge and left & right cutter can be adjusted symmetrically according to different reed space, and the driving device on both sides are of electronic left-off control, thus the warp tension on left and right beams can be guaranteed even and consistent to improve fabric quality.

TECHNICAL PARAMETERS

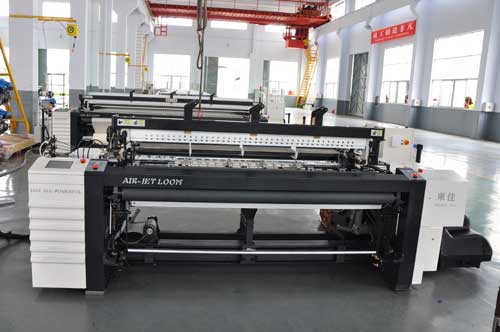

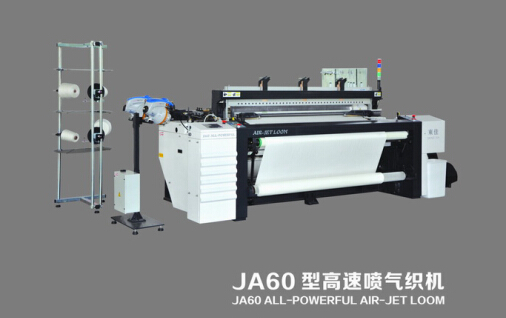

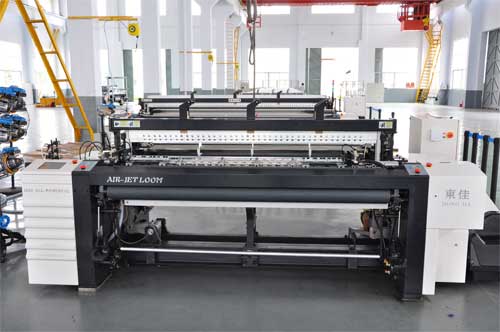

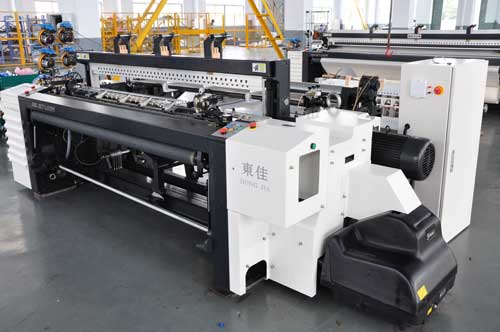

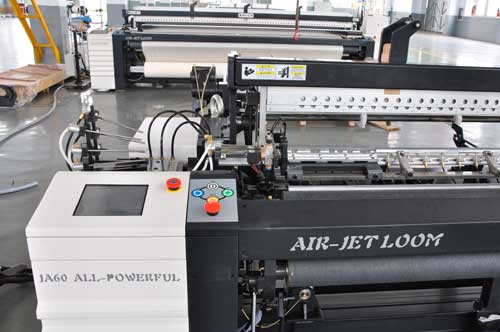

JA60 ALL –POWERFUL AIRJET LOOM

ITEM SPECIFICATION
Reed Space Nominal reed space:190,210,230,250,280,340,360cm
Yarn Range Spun:Ne100~Ne5
Weft Selection 2-Nozzle,4-Nozzle,6-Nozzle for free choice
Drive Direct control and positioning stop through electromagnetic brake. Push –button bimanual operation and forward-reserve inching motion Ultra start motor3.0 KW (cam shedding)3.7KW(Dobby shedding)6.5KW(Jacquard shedding)
Weft Insertion Main nozzle and sub-nozzle combined type Adopt profile reed Auxiliary main nozzle
Shedding Positive cam shedding:Heald frames max.8 pcs Dobby shedding:heald Frame max.16pcs Jacquard shedding
Let-off Positive Continuous let-off Single warp beam (below280cm) Positive easing, double back girder Flange dia: 800
Take-up 25~250, 25~300 Pick density range: 25~250 pcs/inch (mechanical take-up)25~300pcs/inch(electronic take-up) Length counter: display of weaving reports, with fixed-length stop function. 60mm,520mmMax.Take-up dia:600mm(cam,dobby,jacquard shedding);520mm(crank shedding) Temple:t op mounted type. Crank type multiple sley sword beating-up mechanism
Beating-Up (190-280cm), 4-link rod beating-up(190~280cm),6-link rod beating-up(above 280cm

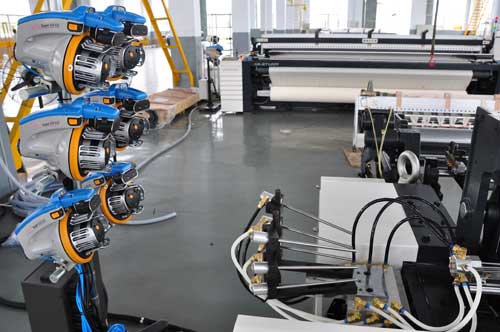

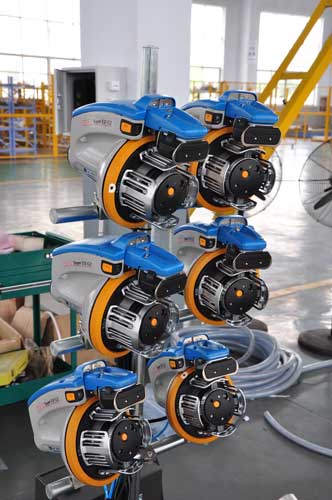

Measuring/storing Vibrating type pick storer
Weft stand Floor-mounted 4 cones(2-nozzle);floor –mounted 8 cones(4-nozzle)
Selvedge Planetary gear motion
Waste filling removal Catch cord type
Cuter Mechanical type
Lubrication Oil bath system for the main driving parts, centralized lubrication by manual]
Auto –stop motion Weft yarn: Photoelectric weft feeler, double feelers Warp yarn: electric contact –type-6-row droppers Other: stop motion for selvedge and catch cord yarn
Automation Artificial intelligent touch screen: with function of parameter setting, Autocontrol,automatic monitoring, self-diagnosis. Pick finding device: automatic shed finding Slow inching by inverter(forward ,reserve) USB USB data interface

Main imported parts list

No. Description Manufacturer Country
1 Electrical control system DENKEN Japan
2 Shedding STUBIL France
3 Pick storer IRO Sweden
4 Heald frames NEW LIGHT Japan
5 heald wires KIJIREED Japan
6 steel reeds KIJIREED Japan
7 Electromagnetic valve SMC Japan
8 Air passage part SMC Japan
9 Bearing (key parts) NSK or SKF Japan
10 Oil Seal NOK Japan
11 Electronic let-off mechanism Panasonic Japan
12 Electronic take-up device Panasonic Japan

REMARK: THE ORIGIN OF ABOVE PRODUCTS POSSIBLY TO BE THE OTHER COUNTRY OR REGION, BUT SUBJECT TO ITS ACTUAL ORIGIN.

EXCELLENCE IN WEAVING PREPARATORY

PRASHANT GROUP, established in 1975, is one of India’s prominent and fats growing Textile Machine manufacturing company. He group has co-operations with leading European, American and Japanese textile machine manufacturing companies which bring an edge in updated technology and enhancement in product profile.

  • PRASHANT GAMATEX PVT LTD,
  • PRASHANT ROSTONI
  • PRASHANT BROMAS TEXTILE MACHINERY PVT.LTD
  • PRASHANT WEST POINT MACHINERY PVT.LTD.
  • PRASHANT FERBER LOGISTICS AUTOMATION PVT LTD.
  • PRASHANT TEXMACH PVT. LTD.

INFRASTRUCTURE

Spread over 70,000 m2, the company has modern infrastructure. The lush green environment, insulated factory premises and work friendly atmosphere support in creating world-class products.

People

The company’s greatest source of strength and inspiration lies in its manpower. The companies’ dedicated and professional staff is focused on customer satisfaction, operational excellence and above all, designs innovation.

Corporate social Responsibility

The group is actively involved in the up liftment of the tribal communities several districts of Gujarat and Bihar. The company is always on the forefront, extending a helping hand to the society focusing mainly on education and health care.

PRASHANT WEST POINT

Direct warmer Model:MPB

GOOD WARPING IS HALF SIZING

Construction

Extremely sturdy and robust structure for vibration free operation

Perfect yarn Build Up

Pre-set pressing force on press roll in conjunction with uniform heard tension ensures absolute cylindrical yarn built up, uniform hardness and density of warp beam

Processing Monitoring

Color graphic touch screen display with user friendly software to monitor production data such as length, stoppage, end breakage, shift wise production etc.

Safety Provision

Safety bar for operator protection .It is inter locked

TECHNICAL SPECIFICATION OF MPB

TYPE: Spindle Driven Width:1400-2600mm
Dia: 800-1600 mm Speed:upto 1200mpm

Automation and Control

The entire warping operation is monitored and controlled by advanced electronics.

Touch screen type colour graphic display with user friendly software helps setting and monitoring of various parameters.

Quick & Efficient Braking

Special type of hydro-pneumatic caliper brakes is provided on both side of beam to stop the machine instantly. It will eliminate the chance of lost end in beam, even while running at maximum speed. The break is maintenance free except for the liner. Air Craft type of brake is used in press Roller and measuring roller. Both rollers will stop simultaneously to avoid any length variation.

Pressure Roller

A good quality of warp beams with uniform hardness and density can be produced by a system of pneumatically actuated pressure roll with a kick back arrangement. It is made of hard impregnated paper tube and hence is light weight & maintenance free. During stop dignal,it retracts to avoid the rubbing or abstraction of the yarn. It is having a smooth surface and also is dynamically balanced.

Measuring Roller

Processed ends are guided to the beam by means of hard anodized and dynamically balanced measuring roller. It is equipped with aircraft type brake which stops the roller instantly during machine stop to avoid any length variation

Expandable Comb

Comb is provided with expansion/retraction & oscillation movement through geared motor.

Automatic Doffing

Extremely easy and safe donning & doffing of beam is controlled through geared motor mechanism.

V creel

Structure

Sturdy structure arranged in ‘v’ configuration having two wings with a thirty five degree wing spread.

Electronic Stop Motion

In the event of a warp break, our high tech non-contact type system instantly activates the yarn clamping device and there by stops the warping machine quickly .Each vertical package row has an indicator light for quick locating of the broken end.

Integral Air Blowing Device

Individual lint blow off system is provided with each end

Tension Bars

A two bar tension system is located between each stop motion post and package post. The mechanism activates during start-stop and stand-still position, which compensates the yarn tension of the creel and prevent the snarling at the time of machine stoppage.

Yarn Cutter Device

Both creel wings are equipped with yarn cutting assembly. It cuts yarn end at a beam change as operator moves the cutter assembly outside of each wing. Once the yarn is cut, the reserve package are ready to be rotated into the active position.

Creel Changes each wing is independently rotated from push button station Removing the depleted packages and creeling of a new reserve lot may take place while the packages in the run position are being warped.

Designed By Our Experts
Endorsed By Our Customers

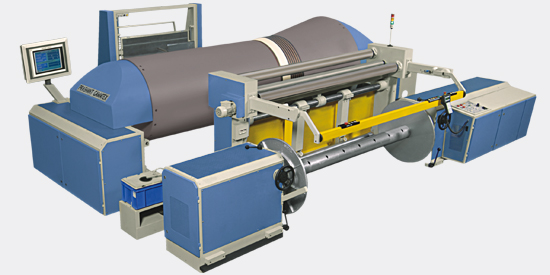

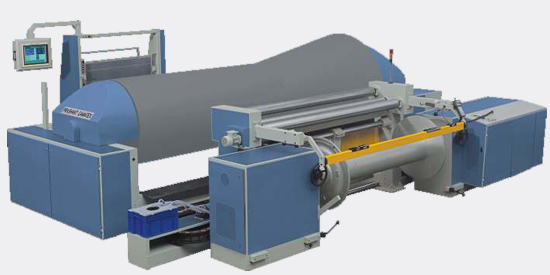

Introducing ASIA’S FIRST & Most Advanced SECTIONAL WARPER
with Cradle Type Beaming &Laser Technology

LASERTRONIC PLUS

Cradle type beaming structure

Extremely rigid cradle type beaming structure. It consists of left and right independent movable cradles having separate geared drive. Both side beaming structure moves by push button.

Yarn Built-up through Laser Sensor

Traverse pitch is very important factor for the Sectional Warping Machine. Standard system is to derive the traverse pitch on the basis of theoretical data, or measuring indirectly. Such system results in different levels of accuracy.

We have introduced highly accurate, online pitch measuring device .The system incorporates continuous measuring and monitoring of yarn built-up by laser Sensor right from first section. This is a contact-less system with very high accuracy.

Kick Back type Feeler Roller for Compact Beam

For high precision, uniform, compact and tidy warping, feeler roll guided by pneumatic closed loop A/C servo drive is provided on warp table. This actuates controlled pressure over warp section on drum. On stopping of warping operation, the feeler roll retracts automatically so as to avoid partial abrasion on yarn. A compact package is achieved on the drum at low thread tension.

Programmable Leasing Device

Pnumatic leasing device ensures precise and smooth operation.

The device is programmers by plc for tilting the spit rod frame simultaneously for 7 lease operation. The high-tech device ensures reliability of system and ease of operation.

With the help of motor ease reed mounted in easing sand oscillates gently ruing warping operation to avoid continuous abrasion by yarn, ensuring longer life.

Hydraulic Air Cooled Disc Brake

Extremely powerful hydraulic disc brake on each side of drum with blower and a specially designed hydraulic power pack ensure soft yet effective braking.

Machine Specifications

Working Width 1800 mm to 4200 mm
Beam Flange Diameter 800/1000/1250 mm
Cone Angle 7/8.5/10.5
Drum Circumference 3140 mm
Warping Speed 0-1000 mts/min
Beaming Speed 0-200 mts/min
Beaming Tension 0-600 kg (higher on request)

Salient Features

  • Robst separate warping and beaming structure
  • Hightech cradle type Beaming structure
  • Extremely effective air cooled hydraulic disc brakes
  • Constant beaming tension with beam oscillation function.
  • Three servo systems for warp table treverse mtion,warp table cross motion and machine head stock motion
Introducing ASIA'S FIRST & Most Advanced SECTIONAL WARPER with Cradle Type Beaming & Laser Technology

MACHINE SPECIFICATIONS

Working Width 1800 mm to 4200 mm
Beam Flange Diameter 800/1000/1250 mm
Cone Angle 7°/8.5°/10.5°
Drum Circumference 3140 mm
Warping Speed 0 - 1000 mts/min
Beaming Speed 0 - 200 mts/min
Beaming Tension 0 - 600 Kg (higher on request)

FEATURES

  • Robust separate warping and beaming structure.
  • Hightech cradle type Beaming structure.
  • Extremely effective air cooled hydraulic disc brakes.
  • Constant beaming tension with beam oscillation function.
  • Three servo systems for warp table traverse motion, warp table cross motion and machine head stock motion in synchronization with each other.
  • Ball screw for high precision warping.
  • Linear guide for smooth movement of under carriage.
  • Hightech safety device

State of the Art Sizing Technology

Prashant West Point is a leading manufacturer of state of the art sizing machine.

TECHNICAL SPECIFICATIONS

Width 1800-4000 mm
Flange Dia 800-1250mm
Speed up to 150 m/min

FEATURES

  • Stationary or Magazine creel in the module of 4
  • Unwinding tension controls through advance control system
  • 2 different type of size box – horizontal and Vertical Pull Out
  • Individual drives for size boxes with digital data exchange, ensures minimum wet stretch between the sections
  • Innovative design of drying cylinders for improved drying efficiency
  • 2 different type of beamer as per the application
  • Extremely robust construction
  • Constant and uniform winding tension across the width
  • Complete operation controls in closed loop with advance servo system

Brochure

  • Corporate Brochure
  • Lasertronic Plus
  • Sizing machine-Pacesetter-E
  • Sizing Pacesetter A
  • Prashant Ferber
  • Prashant Texmach
  • Prashant West Point

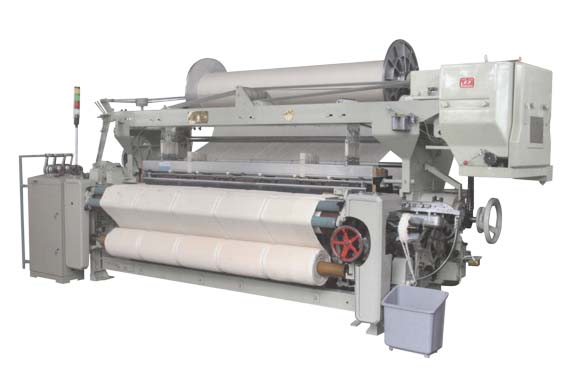

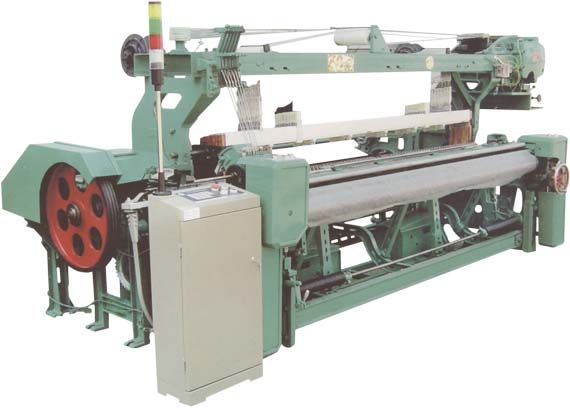

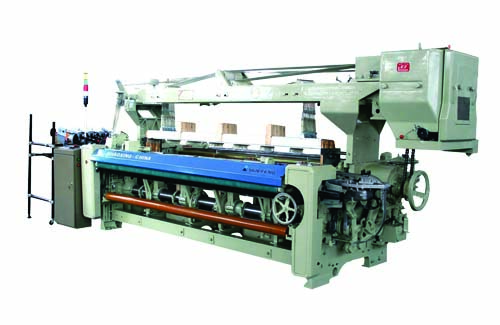

“ANKIT ” High Speed Rapier Loom

  • Customized High Speed Rapier Loom for Indian Textile Industry.
  • Nice Appearance
  • Excellent Performance
  • Strong structure and Heavy body.
  • Easy Maintenance.
  • Lower Noise level.
  • Heavier V Belt.
  • Bearings used instead of Bushing. ( NSK Japan )
  • Rapier belt made from Aerospace material.
  • Screw class 10:9 Top quality.
  • Bearing model warp beam foot.
  • Double cloth pressing model take- up.
  • Beam Dia – 680mm
  • Cloth roll dia. 420 mm
  • Machine testing with five index before dispatch Speed, Noise, Temperature, Power, Vibration.
  • High speed crank provides for Fast start up & ideal for H.S.working.
  • Beat Up – Specially designed short Crank arm & levers. It increases the beating area. It is useful for high density & heavy Fabrics.
  • Take Up – Continuous take up motion provide smooth fabric surface.
  • Let Off – Main parts of this motion is Worm wheel & worms are closed in an oil bath. Its provide accurate matching & longer life.
  • Filling Insertion – It adopt with six levers .
  • Control - It is controlled by Micro Computer, with automatic stop upon warp & weft broken.
  • LCD – Shows the Weaving Parameter & Statistics data.
